VGA KVM switch eight-in, two-out 81U introduction
VGA KVM switch 81U not only supports keyboard and mouse switching, remote control switching, RS232 code control switching, hot-swap function, but also supports 8 hosts to share keyboard, mouse, printer, U disk and other USB interface devices; In addition, it also supports the resolution automatic recognition function; It is mostly used in video conferencing, multimedia teaching, securities finance, office and other scenarios
VGA KVM switch eight in, two out 81U features
01. Support USB 1.1 and USB 2.0 devices
02. Support Windows, Mac, Linux, Android and other multi-system use
03. Support VGA video output bandwidth up to 550M
04. Support broadband display display, VGA output resolution supports 2048*1536p, 1920*1440p, 1920*1200p, 1920*1080p, 1600*1200p, 1360*768p, 1280*720p, etc
05. Support VGA dual-screen output display, transmission material: VGA end ≤ 10 meters; USB≤ 5 meters
06. Support USB port insertion automatic identification detection, automatic scanning, computer sleep wake and other functions
07. No need to install the driver, plug and play, easy and fast to use, support compatible with most wireless keyboard and mouse, mechanical keyboard, gaming mouse
08. Support the video screen and audio function of the computer host that needs to be operated by keyboard hot keys, mouse, panel keys, infrared remote control, serial port switching and other switching methods
09. Support hot plugging, no need to turn off the power of the device, you can directly plug in and unplug cables and equipment parts from the port
VGA KVM switch eight-in, two-out 81U physical picture
VGA KVM switch eight-in, two-out 81U interface description

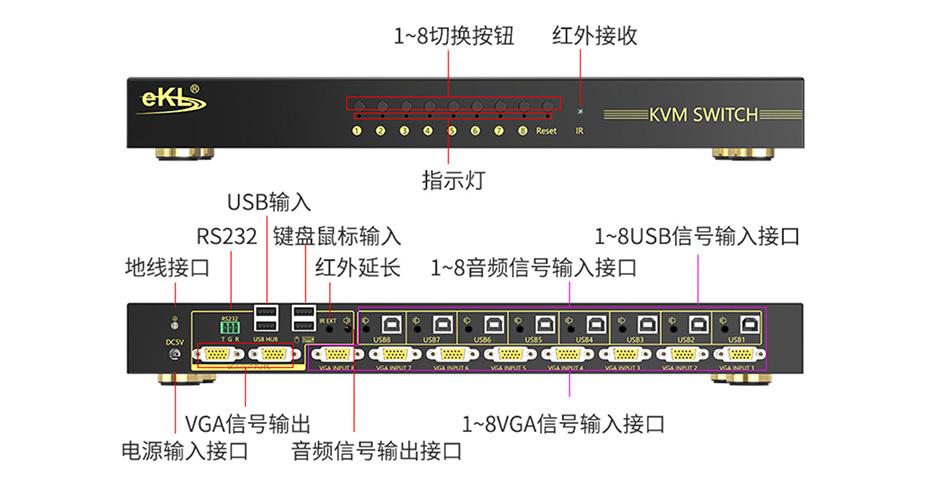

VGA KVM switch eight-in, two-out 81U physical interface illustration

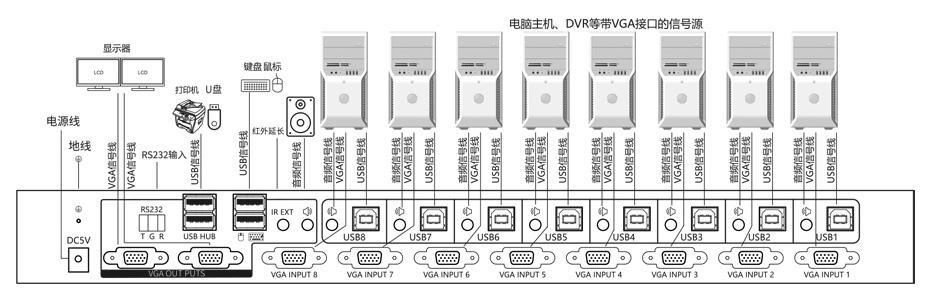

VGA KVM switch eight-in, two-out 81U connection usage diagram
VGA KVM switch eight-in, two-out 81U remote control switching

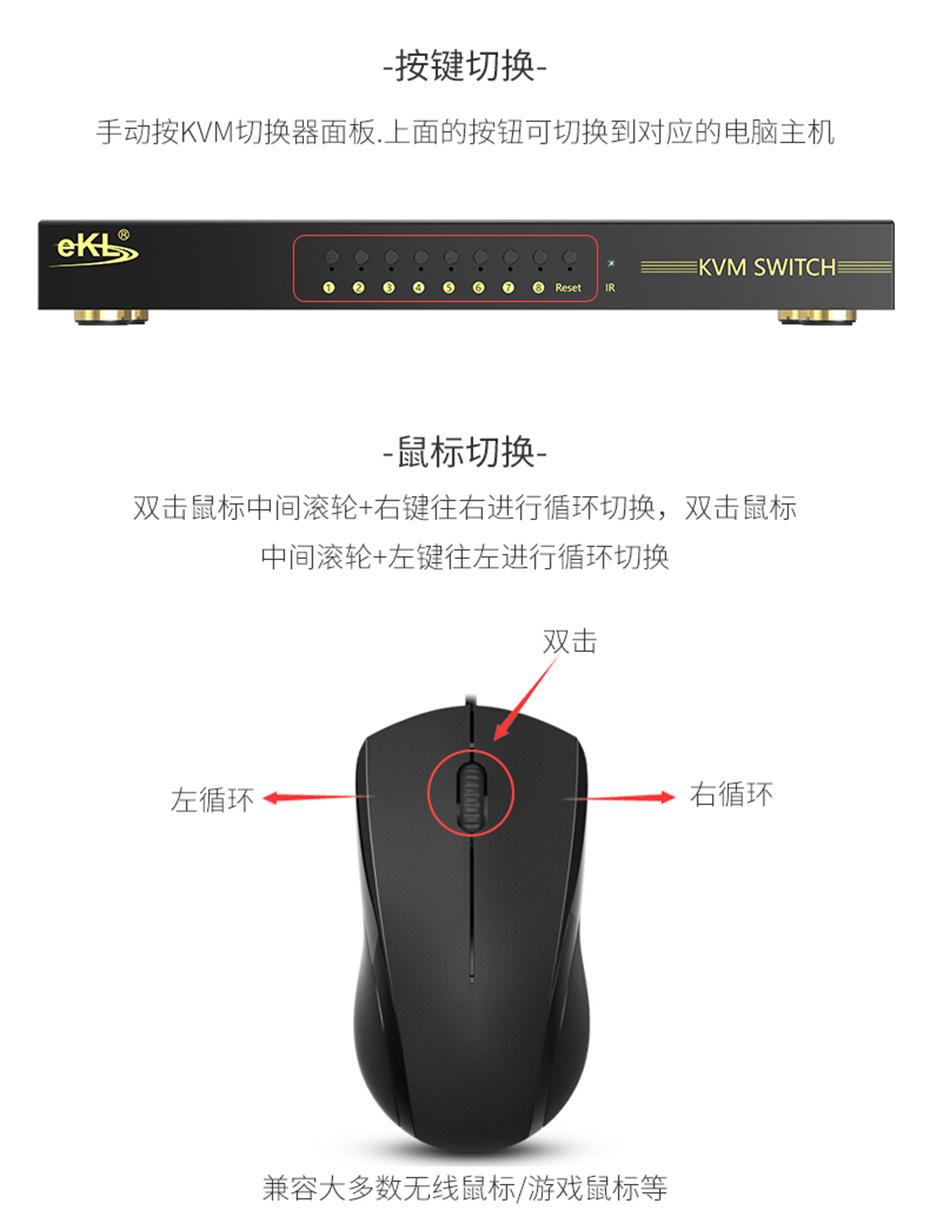

VGA KVM switch eight-in, two-out, 81U button switching and mouse switching

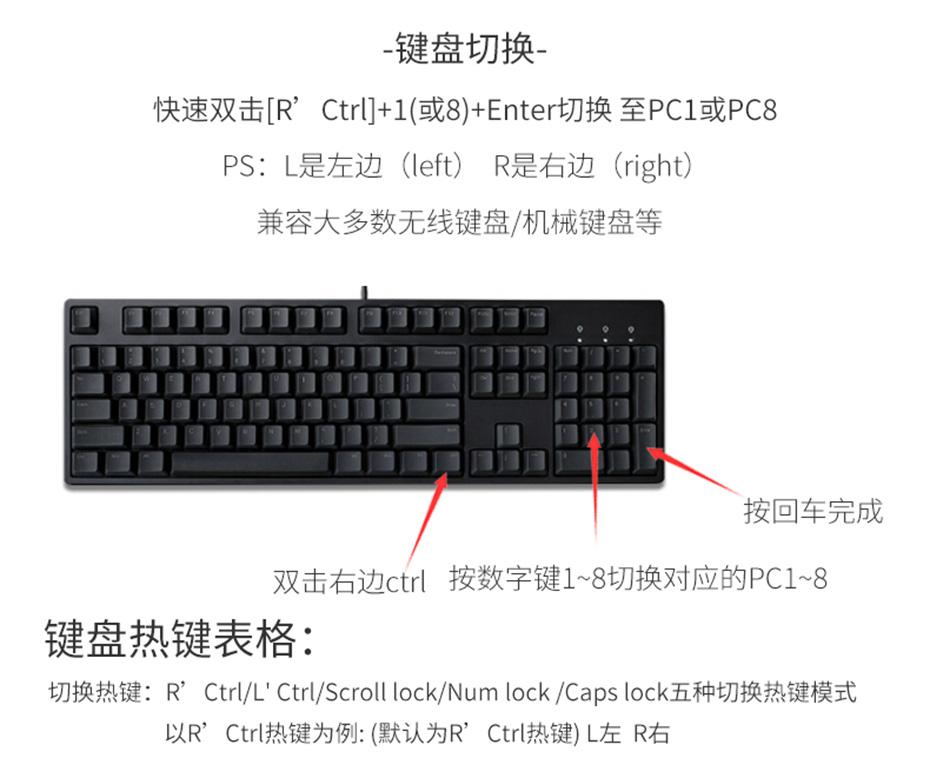

VGA KVM switcher 8 in 2 out 81U keyboard hotkey switching

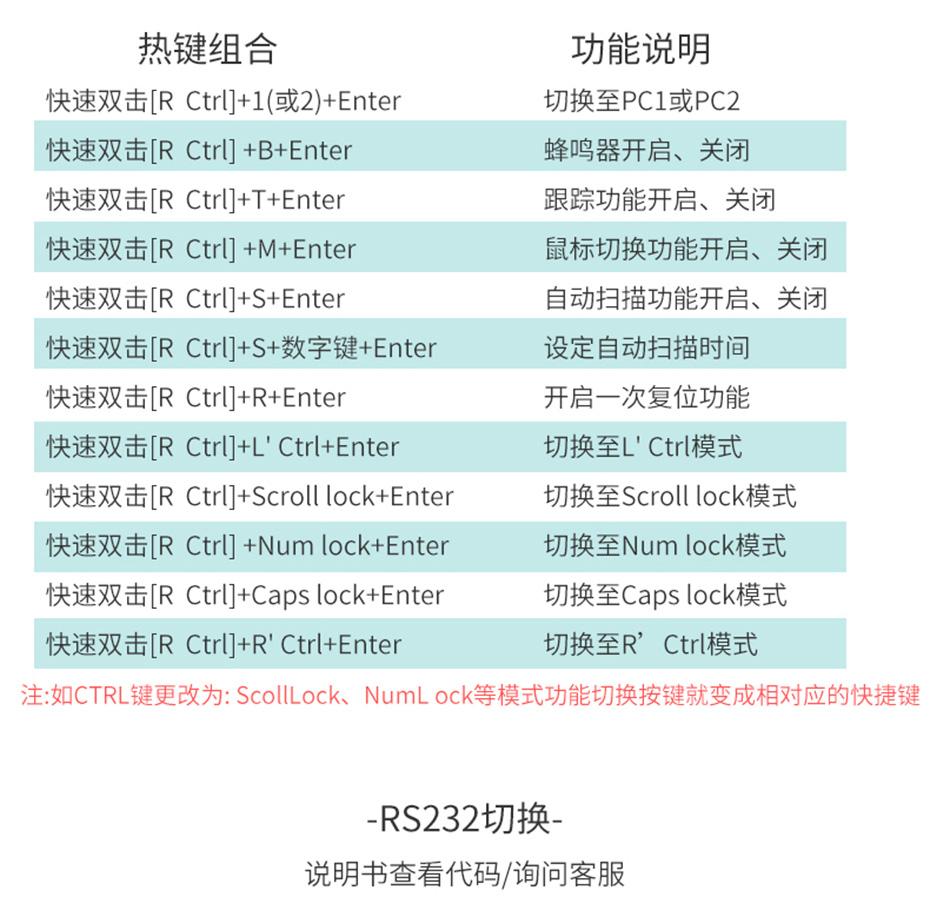

VGA KVM switch eight-in, two-out 81U hotkey combination function description table
VGA KVM switch eight-in, two-out 81U specifications
VGA resolution/resolution: 2048*1536p, 1920*1440p, 1920*1200p, 1920*1080p, 1600*1200p, 1360*768p, 1280*720p, etc
PC connection interface: VGA type DB15 female station + USB2.0 A type port + 3.5mm 3 audio interface
Control terminal connection interface: VGA type DB15 female station + USB2.0 type B port + 3.5mm 3 audio interface
PC side selection method: panel keys + remote control + mouse + keyboard hotkeys + RS232 communication
VGA input impedance: 75OHM
VGA bandwidth: 550MHz
Maximum operating current: 450mA
Power adapter: AC input: (50-60Hz) 100V-240V DC output: 5V/1A
VGA KVM switch eight-in, two-out 81U RS232 control code

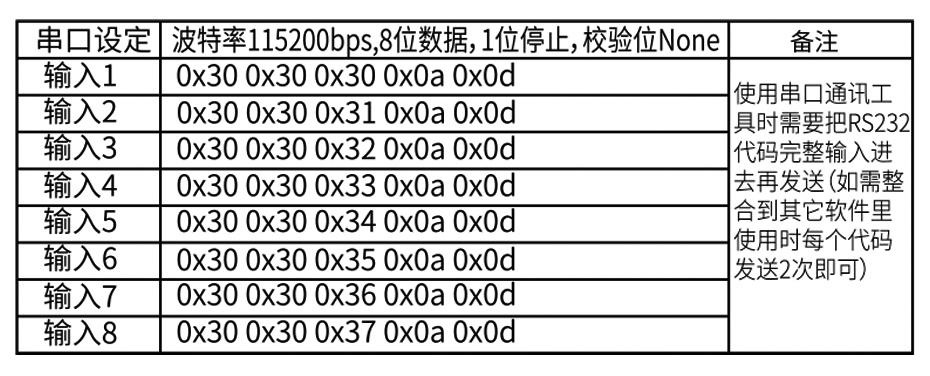

VGA KVM switch eight-in, two-out 81U RS232 control code table
VGA KVM switch eight-in, two-out 81U connection usage diagram
